Notes
- 59 - If the kit does not include a special piston rod nut, use a nut from the shock absorber.
- 63 - Depending on the vehicle model, lowering, or welding accuracy of the chassis components, the adjustment range may vary.
Technical data
- Installation location: Front axle
- Year of manufacture: 09/96 - 10/03
- TÜV certificate: no
- Camber adjustment range: -
- Adjustment range of bolt pitch angle: -
- Suitable for OEM chassis: no
- Suitable for: MTSGWMI01, MTSGWMI01-S
- In sets: MTSGWMI01, MTSGWMI01-S
- For A - piston rod diameter: 12.4 mm
- For B - Thread pitch of piston rod: M10x1.0
- For C - groove length: 65 mm
- For D - Thread length of piston rod: 25 mm
- Spring inner diameter: -
- Item number: MTSCP17SET
- Image may differ from the original

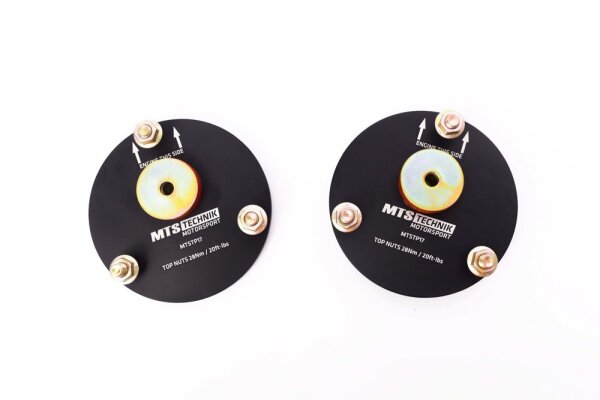

MTS Technik polyurethan camber plates – Precise adjustment and extreme durability
You no longer need to worry about the availability of individual components for your suspension. In our shop, you will find all the spare parts you need for coilover suspensions to fully meet your expectations. We offer a 2-year warranty with no mileage limit on all components, so you can drive with peace of mind.
Evolution 2 support bearings – "Daily Stance – Basic Motorsport"
The Evolution 2 support bearings from MTS Technik are the latest generation of our upper support bearings, inspired by the slogan "Daily Stance – Basic Motorsport." These bearings combine sporty features such as increased stiffness, a new Uniball bearing, and precise angle adjustments with high everyday usability and impressive black and Gold aesthetics, as appreciated by show car owners.
Features and benefits of MTS Technik camber plates
MTS Technik camber plates offer various features that provide different benefits depending on the application. Below is an overview of the main features and their benefits:
| Feature |
Description |
Benefit |
Application |
| Camber adjustment |
Adjusting the angle of the wheels relative to the ground |
Improved traction in corners, precise wheel alignment; perfect for motorsports and Stance. |
Motorsports, Stance, Daily driving |
| Caster adjustment |
Adjustment of the pitch angle of the bolt |
Increased steering stability and more precise control, especially in RWD vehicles. |
Motorsports, RWD vehicles |
| Polyurethan insert |
Replaces factory rubber with stiffer Polyurethan |
Increased stiffness and improved steering precision, ideal for sporty driving styles. |
Motorsport, Stance, Daily |
| Additional lowering |
Enables additional lowering of the vehicle |
Allows for greater lowering than the standard coilover suspension. |
Stance |
| Required for coilover suspensions |
Essential for the proper installation of some coilover suspensions |
Ensures precise and secure installation of the suspension. |
Motorsport, Stance, Daily |
35% larger Uniball bearing for maximum stability
The upper shock mount is the most heavily stressed suspension component. The new, reinforced Uniball bearing in the MTS Technik support bearings is 35% larger than its predecessor. The bearing is made of chrome-plated bearing steel and stainless steel, and the PTFE insert ensures quiet, smooth operation. This makes it one of the largest and most robust bearings on the market.
Angular contact ball bearings in the spring plates – for greater comfort
A new feature of the Evolution 2 support bearings is the spring cap with an angular ball bearing that is included in the delivery. This reduces the load on the entire structure and significantly increases driving comfort. It also eliminates the familiar "bouncing" of the springs.
Precise adjustment of camber and caster angles
Lowering a vehicle significantly can affect the angle of the wheels. With MTS Technik camber plates, this effect can be precisely adjusted. Many of our support bearings also offer the option of adjusting the caster, which is particularly helpful for motorsport tuning.
Additional lowering and full steering precision
Our MTS Technik support bearings perfectly complement coilover suspensions and enable precise steering adjustment and additional lowering. This lowering gives you the precise control that many users need for their individual vehicle setups.
Aesthetics and durability combined
In addition to their functionality, MTS Technik support bearings also impress with their aesthetics. Black anodized aluminum and the laser-engraved MTS Technik logo give the product a high-quality and elegant look. Lightweight and durable materials, milled on precise CNC machines, guarantee a long service life and high corrosion resistance.
"Inox Easy Slide" – New camber angle adjustment system
Our proprietary "Inox Easy Slide" system offers simple, effortless adjustment of the tilt angle. Made of high-quality stainless steel, this system is durable and powerful even under adverse conditions.
Eibach springs
parts certificate
Designed and assembled in the EU
