Notes
- Information: specially equipped
- E1 - Unless specifically stated otherwise, vehicles equipped with a sports suspension ex works will have the lowering specified in the catalog reduced by the amount of the factory lowering. Unless specifically stated otherwise, vehicles equipped with a raised suspension ex works (e.g., off-road character, crossover, or rough road package) are excluded from the use of our products. Before installation, please check the parts certificate/ABE to ensure that the delivered items (see parts designation) are approved for your vehicle (see area of application). The current parts certificates/ABE can be found at www.eibach.com. In case of deviations, the parts must not be installed – in this case, please contact the seller. We recommend that our products only be installed in a qualified workshop that has appropriately trained personnel and the necessary special tools. If the installation differs from the workshop manual, Eibach installation instructions are available online. You can "read" the installation position from the printing – have the spring installed so that you can read the printing. The number must not be "upside down." After installing the spring/suspension components, it is essential to check the wheel alignment values. All wheel/tire combinations approved by the wheel type testing centers can be used. The requirements in the wheel certificate or wheel ABE must be observed, with the exception of the requirement for standard suspension. Depending on the engine, transmission, equipment, and tolerances of the vehicle, the lowering may deviate by a few mm from the specified values. The amount of lowering is always reduced by the amount of factory lowering. The usability of our products refers to standard production vehicles. In the case of conversions and special accessories (also applies to standard accessories!), such as the installation of a special brake system (e.g., ceramic brake system), central wheel locking, sports suspension, LPG system, etc., our products may not be usable under certain circumstances. The dimensions specified refer to new production vehicles. Measuring points: Vertical distance from the center of the wheel hub to the lower edge of the fender. The dimensions specified are target values, which may vary depending on the vehicle. If the production suspension has electronic damper control, this functionality is not available when using MTS Technik x Eibach suspensions. The error message displayed in the on-board computer can be cleared by an authorized repair shop. If available for your vehicle, we recommend using Pro-Tronic to suppress the error message.
- E7 - The factory-fitted spring plates are available in thicknesses of 8-23 mm from DB specialist workshops. This allows the lowering specified here to be varied.
- E16 - The optional equipment considered here includes the following point system: Air conditioning - 7 points, automatic transmission (4 + 5 cyl.) - 4 points, automatic transmission (6 cyl.) - 2 points, auxiliary heating - 3 points, sunroof - 2 points, ABS - 2 points, airbag - 1 point, headlight cleaning system - 1 point, engine protection - 1 point, electronic seat adjustment - 2 points. If the combination of additional equipment results in more than 4 additional points, the lowering kit for vehicles with special equipment must be used. The choice of rubber pads is based on the following table: Up to and including 7 points - 8 mm (1 stud), Up to and including 13 points - 13 mm (2 studs), Up to and including 21 points - 23 mm (4 studs). More than 21 points The lowering kit is not suitable for this version.
- E18 - Except vehicles with level control
- E20 - Except vehicles with all-wheel/4WD drive
- 89 - Without NIVO.
Technical data
- Year of manufacture: 12/84 - 06/93
- Maximum front axle load: -1010 kg
- Maximum rear axle load: -1170 kg
- Lowering of front axle: 35 mm
- Lowering of rear axle: 30 - 35 mm
- TÜV certificate: yes
- Image may differ from the original

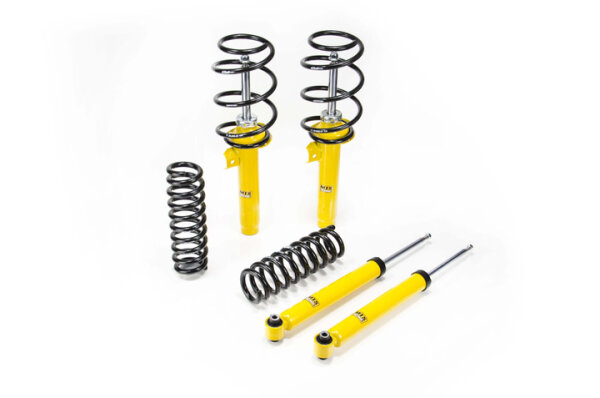

MTS Technik x Eibach Pro-Kit sports suspension
MTS Technik x Eibach Pro-Kit sports suspensions are a simple, effective, and cost-effective way to improve the appearance and handling of your vehicle. Thanks to minimized vehicle tilt during sudden braking, rapid acceleration, or tight corners, we improve stability and consequently increase safety.
The combination of shortened shock absorbers with Eibach Pro-Kit lowering springs awakens the sporting spirit in every road car. A wide range of references with different lowering options means that there is something for everyone.
Product advantages
-
2-year warranty: High quality, confirmed by a 2-year warranty with no mileage limit.
-
High quality: Suspension components are characterized by increased corrosion resistance and are made from the highest quality materials.
-
Twin-tube design: The use of twin-tube technology guarantees stable shock absorber performance.
-
Gas technology: The gas presses on the hydraulic fluid and eliminates the "foam" effect of the oil (a phenomenon that is undesirable and typical of oil shock absorbers), which means higher efficiency during continuous, intensive work.
-
Eibach springs: Springs from Eibach, the global market leader in the sports spring industry.
-
Uniform lowering: The uniform lowering of both axles maximizes steering precision and guarantees a sporty look without compromising comfort.
-
Aggressive appearance: The higher lowering of the front axle compared to the rear ensures an aggressive appearance and an impressive presence.
